Application

Release Liner Material

Nan Ya PP Synthetic paper Application TPU PU release film

Application：

Coated film (coating) is used in the fabrication process of most of the TPU/ PU backing paper and TPU/PU, for TPU is a hot melting resin, which needs to be processed and fabricated through coated film; PU is a solvent resin and needs to be produced by coating. Moreover, the backing paper of TPU/PU is the liner backing paper used in the fabrication process which can be called as release of backing paper while its surface can be customized with three-dimensional micro structures while adding coated the film (coating), with the embossing structure of backing paper that can rollover to the surface of TPU/PU completely, so it can reach the effects of micro structures with no need of purchasing embossing equipment. Moreover, it can be used for 8 to 16 times according to the design of fabrication process in order to realize the main three effects, namely being environmentally friendly, filled with keen artistry as well as being durable.

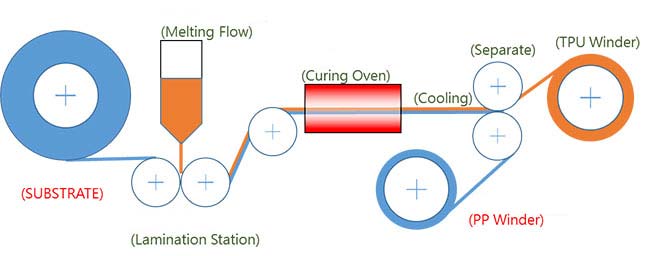

Use process of product:

8-16 times reusability：

Release of backing paper has many kinds of materials and its structure can be divided into two different kinds, namely multilayer structure and single layer structures, wherein PET and synthetic paper are in a solid core single layer structure while the coated paper and YUPO are made into a multilayer structure. Since the backing paper must be fabricated by coating, baking and stripping and so on together with adhesive film; therefore, the backing paper in multilayer structures cannot be heated, pressed and stripped for many times, otherwise its structure will be damaged. On the contrary, the synthetic paper in a single layer special structure not only can be processed many times ( it can be processed for up to 8 to 16 times, according to the ability of the fabrication process), but it also has the characters of higher anti-static electricity, anti-fouling,multiple embossing and so on, compared with the PET material.

Characteristic：
1.	The material is temperature resistant, with stiffness, and good evenness.
2.	The solid core material is not easy to delaminate and crease.
3.	It has good waterproofness and is moisture resistant.
4.	It has better anti-static electricity and is anti-fouling.
5.	After laminated as backing paper, it can atomize the TPU surface with balancing effect (or they may be bright on one side and frosted on the other side) without any anti-adhesives; moreover, it is most favorable to be used by post-processing customers (with good printability, and lamination property…)
6.	It is an environment-friendly material in line with the standard requirement of Rohs and Reach, so its resource recovery effect is very good.

Release paper-brief：

surface shape	model	embossed	colored	specific weight	Thickness (mm)	Width(cm)
Double matte	BCA	463	01A	1.34	0.15 – 0.25	110 - 200
Matte & glossy	BCA	001	01A	1.34	0.15 – 0.25	110 - 200

Compare to others film：

Item	PET film	YUPO	coated paper (both side)	NAN YA PP Synthetic paper
Thickness(mm)	0.10	0.15	0.15	0.15
Structure	1 layer	coated/PP foam/coated	PE/coated paper/PE	1 layer
Price	Higher	Medium	low	Medium
Peeled off	X	O	O	X
Corrugation	X	O	X	X
Water-proof	O	O	X	O
Antistatic	X	X	X	O
Dirt resistance	X	X	X	O
Flatness	O	O	△	O
Matte effect	X	X	X	O
Glossy effect	O(both)	X	X	△(Matte & glossy)
Recycle	O	O	X	O
Embossed	X	△	O	O

Notes：
1.	TPU is hygroscopic. Please store it in ventilated and dry conditions.
2.	TPU tape is shipped with PP synthetic paper or PET film. It not only provides laminating, but also good for printing, sticking and cutting.
	Peel off the backing paper before the high-frequency is molding.

Specification：

PRODUCT：For TPU liner (2PBCLAA)(color 04U) double side matt

ITEM		UNIT	RESULT)		METHOD
			0.15mm
Thickness		%	±7		micro-gauga
Tensile strength	MD	Psi	2500↑		ASTM-D638
	CD		2100↑
Elongation	MD	%	250↑		ASTM-D638
	CD		40↑
Surface Tension (463 emboss)	A	--	Unregulated	Unregulated	ASTM-D2578
	B		46↑(Corona)	46↑(Corona)
Roughness (463emboss)	A	μ"	10~30		JIS-B0601
	B		25~60
Gloss Value(60^。)	A	--	2~5		ASTM-D523
	B		2~5
Transmittance		%	45↓		ASTM-D1003
Whiteness		%	70↑		ASTM-E313
Specific gravity		--	1.33±0.03		ASTM-D792
REMARK： THE ABOVE INFORMATION IS DERIVED FROM OUR QUALITY CHECKS FOR REFERENCE ONLY. IT NEITHER RELIEVES THE PURCHASER FROM RESPONSIBILITY FOR EXAMININIG THE PRODUCT UPON DELIVERY NOR PROVIDES ASSURANCE OF THE PRODUCTS SUITABILITY FOR A PARTICULAR PURPOSE.

PRODUCT：For TPU liner (2PBCLAA)(color 04U)one side glossy one side matt

ITEM		UNIT	RESULT		METHOD
			0.15mm
Thickness		%	±7		micro-gauga
Tensile strength	MD	Psi	2500↑		ASTM-D638
	CD		2100↑
Elongation	MD	%	250↑		ASTM-D638
	CD		40↑
Surface Tension (001 emboss)	A	--	Unregulated	Unregulated	ASTM-D2578
	B		38↑(Corona)	38↑(Corona)
Roughness (001 emboss)	A	μ"	Unregulated		JIS-B0601
	B		25~60
Gloss Value(60^。)	A	--	75~95		ASTM-D523
	B		Unregulated
Transmittance		%	45↓		ASTM-D1003
Whiteness		%	70↑		ASTM-E313
Specific gravity		--	1.33±0.03		ASTM-D792
REMARK： THE ABOVE INFORMATION IS DERIVED FROM OUR QUALITY CHECKS FOR REFERENCE ONLY. IT NEITHER RELIEVES THE PURCHASER FROM RESPONSIBILITY FOR EXAMININIG THE PRODUCT UPON DELIVERY NOR PROVIDES ASSURANCE OF THE PRODUCTS SUITABILITY FOR A PARTICULAR PURPOSE.
